Polychem^®链轮

Brentwood的Polychem链轮由特别选择的高强度尼龙材料制成，比超高分子量聚乙烯和聚氨酯链轮更耐用。所有链轮都配备了标准的整体牙齿，以保持牙齿对齐，并设计用于Polychem集热器链。

联系我们

an image showing a close up of a sprocket for PolyChem Systems

特性

分离式设计允许使用两侧的链轮齿

不易生锈

高强度尼龙6材质

导航Polychem®系统

链轮的产品

A black, circular sprocket with evenly spaced teeth along its edge. The center of the sprocket features a square-shaped mounting hole and additional structural elements for attachment to a head shaft.

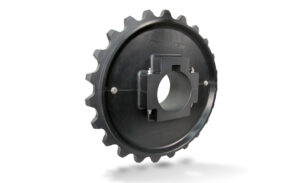

收集器头轴链轮

A metal sprocket with evenly spaced teeth along its outer edge, a circular hole in the center, and additional squared and rectangular cutouts surrounding the hole.

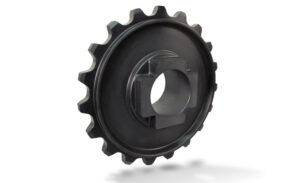

惰轮收集器链轮

A close-up view of a black mechanical gear component with a circular, cogged edge

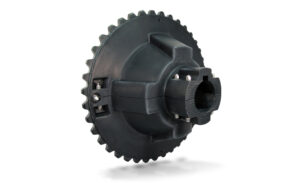

从动链轮

规范

链轮类型	牙齿数量	节圆直径英寸	平均体重磅	Max。键孔英寸	最小洛氏硬度	最小抗拉强度Psi	标准的硬件	标准Ltb 英寸
NCS-720-S收集器链轮	25 t	24.10	35	5.75	R115	10000年	316年学生	5.25
NCS-720-S收集器链轮	23 t	22.21	28	5.75	R115	10000年	316年学生	5.25
NCS-720-S收集器链轮	19 t	18.45	19	5.75	R115	10000年	316年学生	5.25
NCS-720-S收集器链轮	17 t	16.59	14	5.75	R115	10000年	316年学生	5.25
NCS-720-S收集器链轮	13 t	12.89	15	5.75	R115	10000年	316年学生	5.25
NH-78牛齿链轮	40 t	33.25	85	5.75	R115	10000年	316年学生	5.25
NH-78剪销轮毂链轮	11 t	9.26	21	2.5	R115	10000年	316年学生	2.5

没有找到规格表。

A close-up view of industrial machinery with cogwheels, head shafts, and a chain, all shown in a blue-tinted color scheme.

系统的动画

了解如何在一个标准的Polychem系统的所有组件组装和安装。

文章与文献

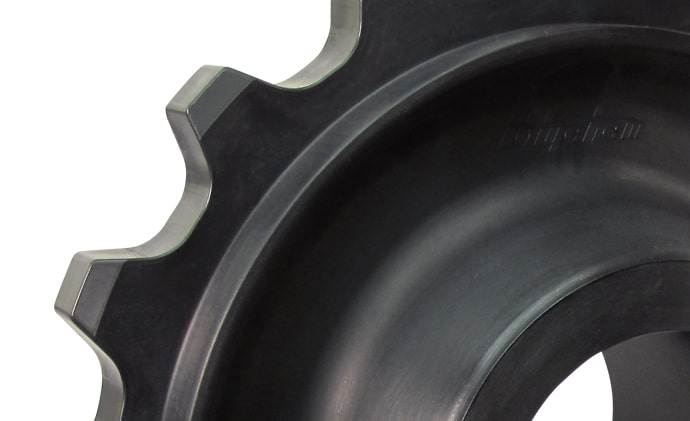

a close up showing the teeth of a sprocket

不是所有的链轮都是一样的

在矩形澄清器中，直线污泥收集器机构具有安装在轴上的罐内链轮齿轮，以传递来自驱动单元的扭矩，并有助于保持链条和飞行系统[…]
