Polychem^®收集器链

Brentwood的Polychem NCS-720-S收集器链是市场上最强的720系列链之一。精密模压从耐用，玻璃增强聚酯，这种轻质链承受高污泥负载在腐蚀性环境。我们的集热器链也可以保护与桶包高粒度或高腐蚀性的条件。通过减少桶磨损，链条使用寿命更长，性能更好。

联系我们

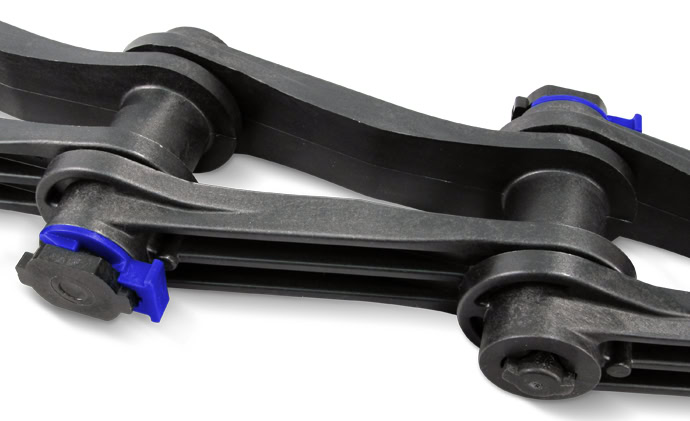

an image of a close up featuring an overview of a collector chain

特性

整体模压链环消除磨损

抗紫外线和化学损害

标准9.5 '长度的纵向收集器

标准4.5 '长度的交叉收集器

导航Polychem®系统

规范

英语度规

系列	球场英寸	每英尺平均重量磅	工作负荷lb -f	销直径英寸	联系材料	销材料	视频材料
nc - 720 s	6.1	1.5	3100	0.866	玻璃增强聚酯	玻璃增强尼龙	缩醛

系列	球场毫米	每英尺平均重量公斤	工作负荷Kn	销直径毫米	联系材料	销材料	视频材料
nc - 720 s	152.4	0.68	13.7	22	玻璃增强聚酯	玻璃增强尼龙	缩醛

A close-up view of industrial machinery with cogwheels, head shafts, and a chain, all shown in a blue-tinted color scheme.

系统的动画

了解如何在一个标准的Polychem系统的所有组件组装和安装。

互补的组件

GritShield®桶包装

Non-Acetal /耐硫化氢

连接销和固定夹

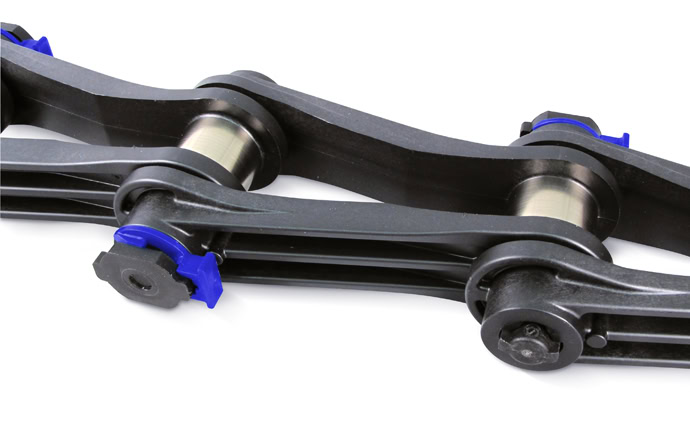

GritShield®桶包装

GritShield®桶包裹收集器链选项通过减少桶磨损来延长链的使用寿命。它由耐用的301 SS制成，适用于高砂砾条件，并可用于高腐蚀性条件的316 SS。

Non-Acetal /耐硫化氢

H2S耐酸收集链选项为100%非缩醛链。它防止夹子被硫酸侵蚀，是专门为有盖的初级澄清池设计的。

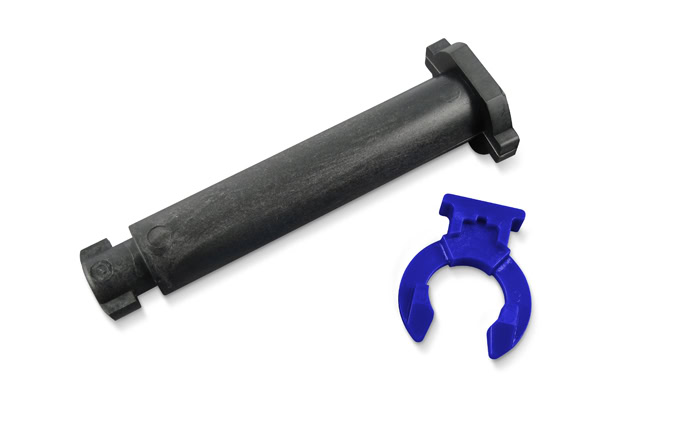

连接销和固定夹

扭转卡扣销和夹设计易于安装，无需特殊工具，锁定t形头防止销旋转。夹子的对比色也简化了现场检查。系统的动画

Close-up image of a black mechanical component with multiple linked sections and visible blue accents. The links are connected by cylindrical pins, forming a collector chain-like structure.

Close-up of a black mechanical linkage system with yellow accents. The collector chain structure features interconnected rotating joints and cylindrical components.

A black cylindrical tool with square ends lies next to a small blue plastic U-shaped clip, resembling a collector chain component, on a white background.
