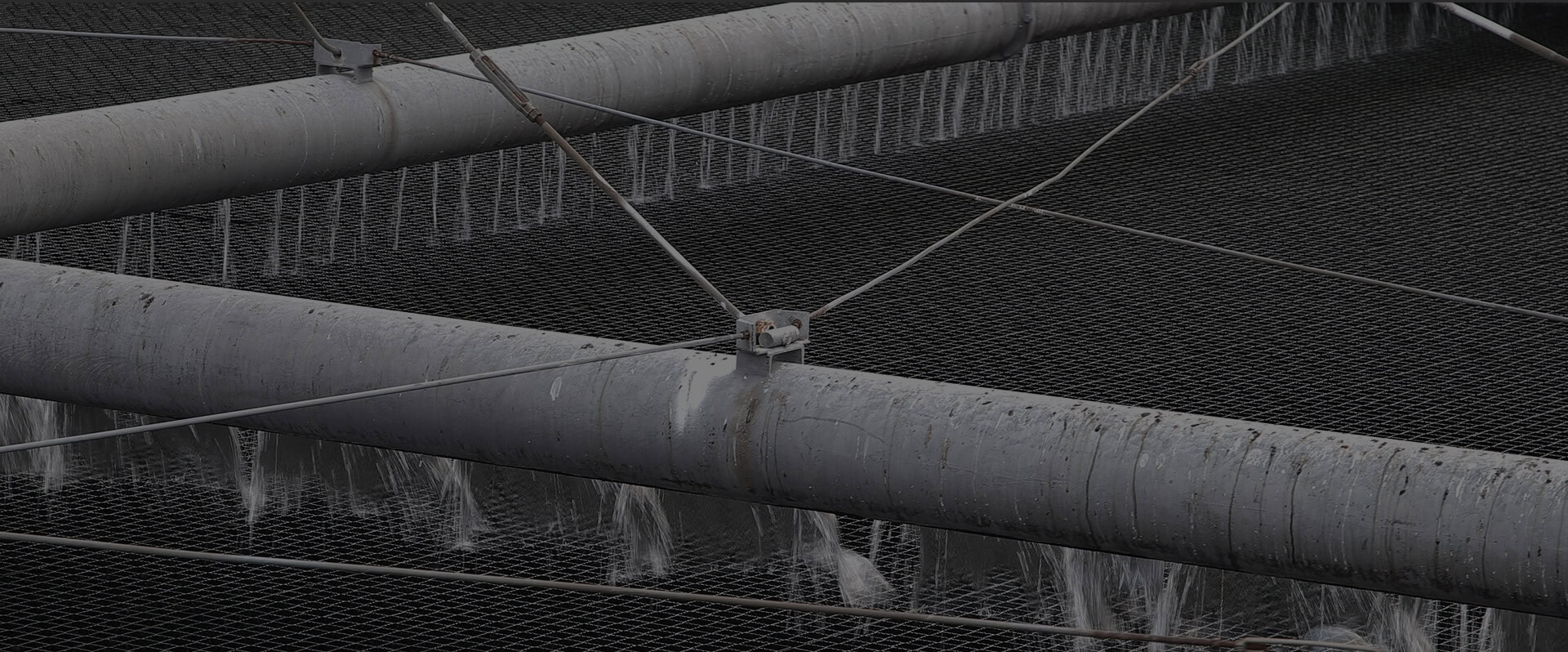

Close-up of large industrial pipes with water cascading through a metal mesh structure. The pipes, carrying wastewater, are supported by a network of cables, creating a complex yet organized arrangement.

驱动单元组件

Brentwood供应的驱动单元是根据系统要求和区域和环境条件为每个收集器定制配置的。每个系统都使用电机和齿轮减速器以及可选组件，例如防止驱动系统故障的过扭矩保护，保持张力的驱动链收紧器，以及保护甲板上方旋转设备的链保护装置。

联系我们

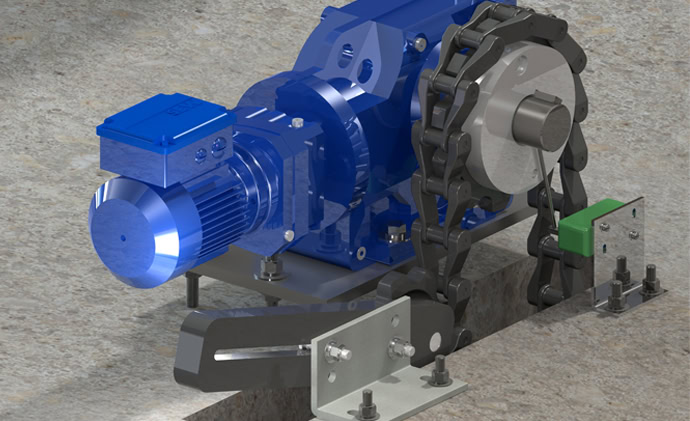

A blue motorized mechanical device, known as a drive unit assembly, is mounted on a concrete surface with bolts. It connects to a chain and sprocket system adjacent to a metal frame.

特性

为您的应用程序定制设计

补充Polychem驱动链

易于复位的扭矩限制器可用

导航Polychem®系统

驱动单元总成产品

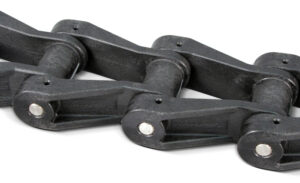

Close-up of a Polychem® NH-78 Drive Chain with thick, interconnected links and visible metal pins at the joints, designed for heavy-duty machinery or conveyor systems.

Polychem^®NH-78传动链

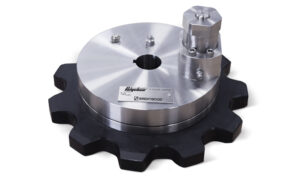

Polychem^®扭矩限制器

规格（传动链）

英语度规

系列	球场英寸	每英尺平均重量磅	工作负荷lb -f	销直径英寸	联系材料	销材料
nh - 78	2.609	1.25	1740	0.375	玻璃增强尼龙	303年学生

系列	球场毫米	每英尺平均重量公斤	工作负荷Kn	销直径毫米	联系材料	销材料
nh - 78	66.27	0.57	7.74	9.5	玻璃增强尼龙	303年学生

规格（过扭矩保护）

产品	零件号	类型	外部可调扭矩范围磅/英寸	最小洛氏硬度	最小Nh-78链轮
扭矩限制器	jse1 - 0150		2,024-9,287	62 R / C	11个牙齿

没有找到规格表。

A close-up view of industrial machinery with cogwheels, head shafts, and a chain, all shown in a blue-tinted color scheme.

系统的动画

了解如何在一个标准的Polychem系统的所有组件组装和安装。

文章与文献

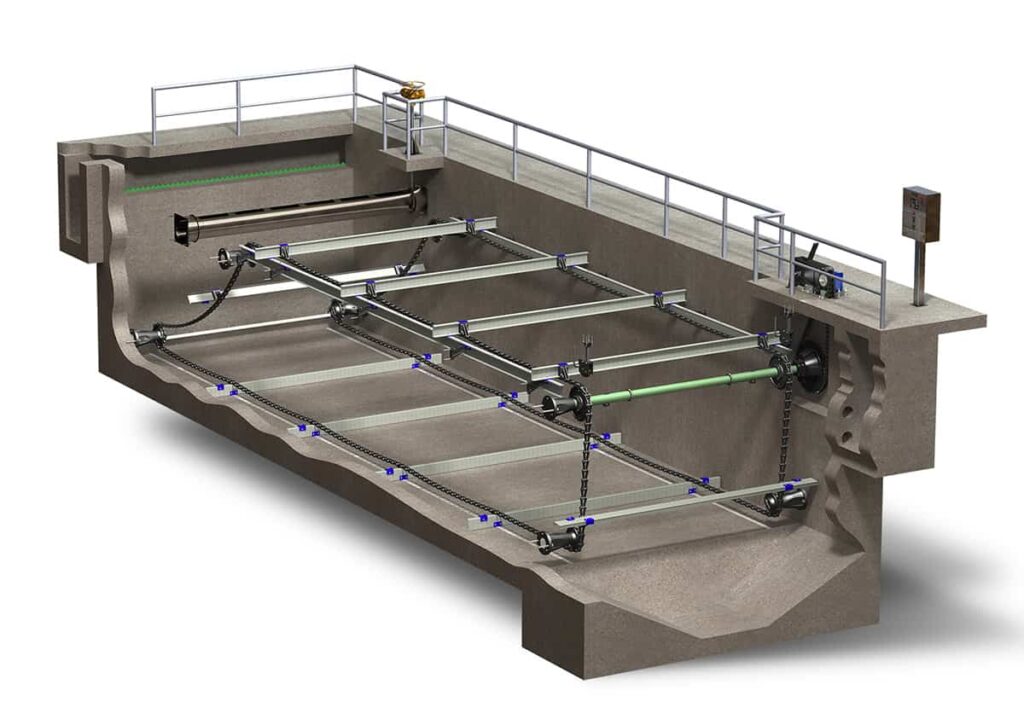

Rectangular clarifier systems
